The clamp that adjusts itself

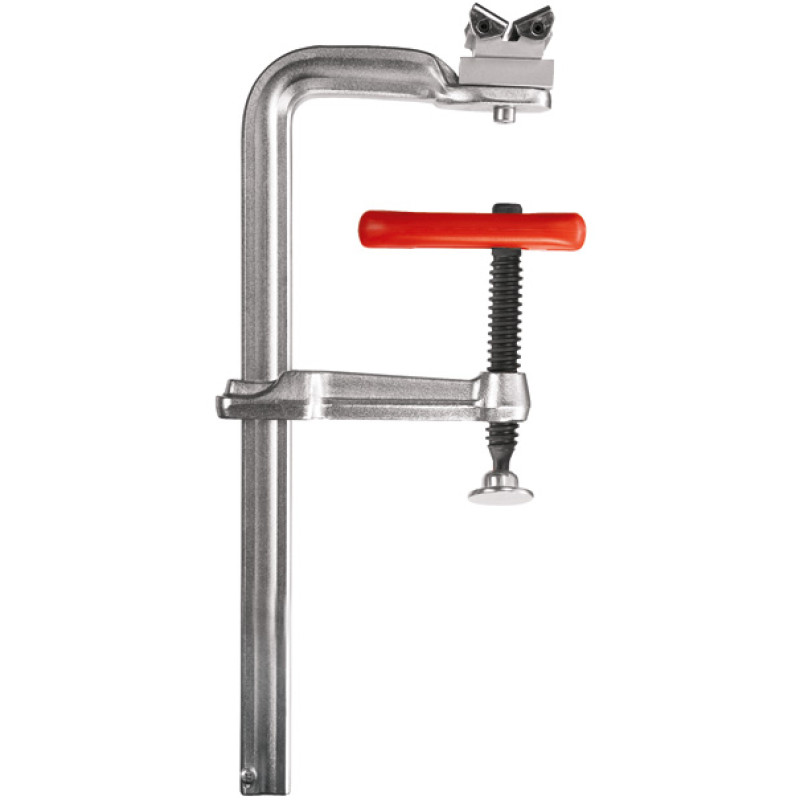

Regardless of whether the workpieces are flat, round, oval or angular, the BESSEY SG30VAD KombiKlamp is an individually adjustable screw clamp which can also be easily changed over from clamping to spreading.

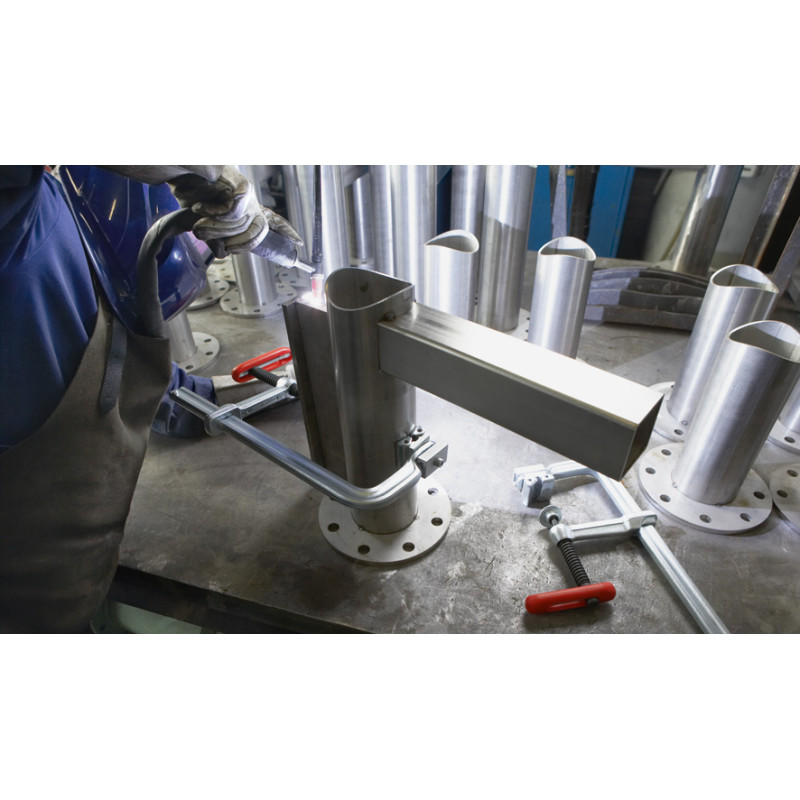

Along with the properties of a traditional all-steel screw clamp, the KombiKlamp has a special clamping attachment known as the Vario Angle Device which offers a perfect fit for workpieces at angles of 60° internal to 60° external. This makes it possible to clamp round, oval and angular workpieces both simply and securely.

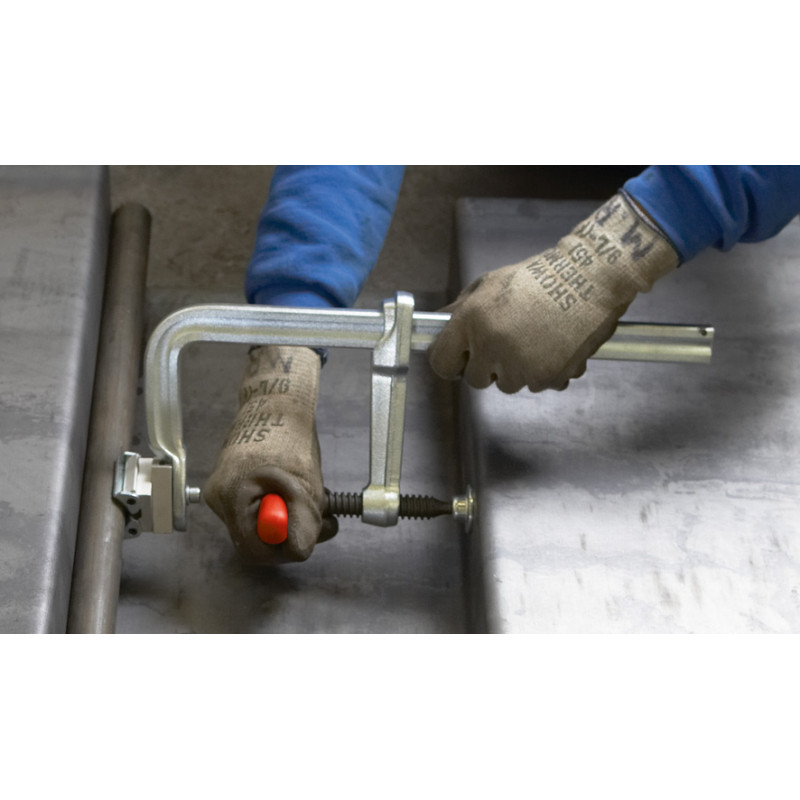

The KombiKlamp can also be used without problems for spreading. Simply loosen the multi-angle-pad with the help of the M8 screw and attach to the outer side. An additional screw at the end of the rail enables the sliding arm to be released easily and you can then remove the sliding arm and replace it for the spreading function. This means that the clamp is quickly ready for almost any working situation.
In addition to its versatility, it has an extremely high clamping force of up to 7,500 N for powerful clamping. The comfortable tommy bar with a plastic pad helps to achieve this in a comfortable way for one’s hand.
The pressure plate that can be replaced without tools makes your day to day work even more convenient. It can be replaced quickly and easily.
