Versatility for timber construction
The portable circular saw with 55 mm cutting depth
The HK 55 portable circular saw in combination with the FSK cross-cutting guide rail. The new mitre-saw system for more independence combines precision and efficiency with a high level of user-friendliness, optimised ergonomics and ease of use. Features such as the cutting depth adjustment with plunge cut function, pendulum hood remote control, guide wedge, and FastFix saw blade change, for example, provide the best possible working conditions. And the FSK cross-cutting guide rail produces precise cuts with repeat accuracy.
- High-torque 1200 W motor with power electronics ensures constant power when sawing
- Safe and easy handling thanks to the cutting depth adjustment with plunge function, pendulum hood remote control and guide wedge
- Angle adjustment with central clamping mechanism from 0 to 50 degrees
- Sawing system: HKC complete with FSK cross cutting guide rail and FS guide rail
- Safe and perfectly straight sawing along the guide rail
Product highlights
- Achieve ideal results more quickly: Constant power when sawing to 55 mm thanks to the high-torque 1200-watt motor with power electronics.
- Convenient and safe: Safe handling – thanks to cutting depth adjustment with plunge-cut function, remote control of the suspended cover, guide wedge, and angle adjustment from 0 to 50°.
- Systems get it done: Reproducible angle cuts and guided cuts in combination with the FSK cross-cutting guide rails and FS guide rails.
Technical data
- Power consumption - 1200 W
- Idle engine speed - 2000-5400 min⁻¹
- Saw blade diameter - 160 mm
- Angular range - 0-50 °
- Cutting depth 0° - 90° - 0-55 mm
- Cutting depth 45°/50° - 42/38 mm
- Dust extraction connection diameter - 27/36 mm
- Weight - 4,40 kg
Noise and vibration values
- Sawing wood: Total vibration average, Ah - 2,50 m/s²
- Sawing wood: A-weighted sound pressure level, LpA -89,00 dB(A)
- Sawing wood: Uncertainty (noise) K - 3,00 dB
- Sawing wood: A-weighted sound power level, LWA - 100,00 dB(A)
- Sawing wood: Uncertainty (vibration) K - 3,00 m/s²
- Sawing metal: A-weighted sound pressure level, LpA - 89,00 dB(A)
- Sawing metal: Total vibration average, Ah - 3,00 m/s²
- Sawing metal: Uncertainty (vibration) K - 3,00 m/s²
- Sawing metal: A-weighted sound power level, LWA - 100,00 dB(A)
- Sawing metal: Uncertainty (noise) K - 3,00 dB

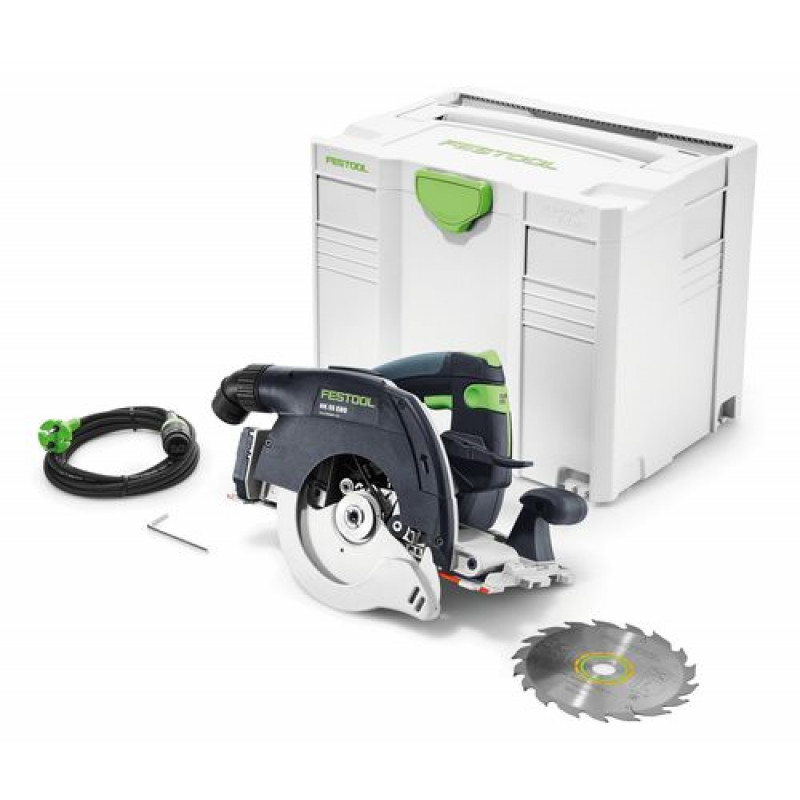

Items included
- HW standard saw blade W18 (500458)
- hex key WAF 5
- in SYATAINER SYS3 M 337
Main applications
- Rip and cross cuts in materials up to 55 mm thick
- Cutting roof battens to length
- Sawing lining boards/shuttering to size
- Sawing boards to size
- Cutting chipboard to size
