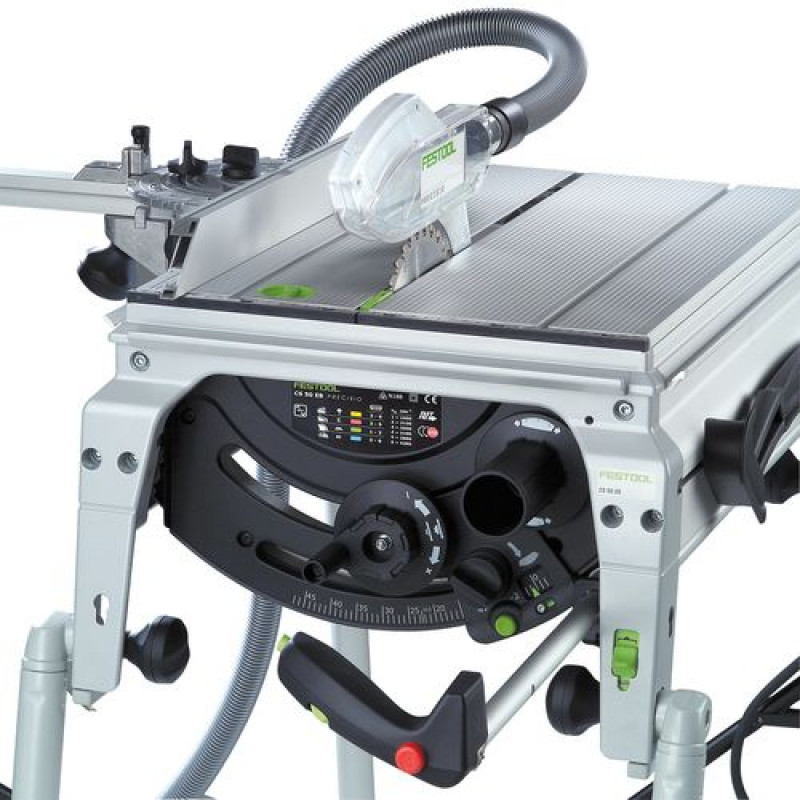

Festool Trimming saw PRECISIO CS 50 EBG-SET

• Tool-less FastFix saw blade changes
• Multifunction handle: one handle with all functions integrated
• Change quickly from rip to cross cuts with the angle stop
• Moving splinterguard for splinter-free cuts on both sides
• Surrounding V groove for locating angle stops
• Can be upgraded to a sawing station by adding an extensive range of accessories
• Saw blade holder (accessory): saw blades and splinterguard always within easy reach

Features

• Splinter-free cuts on both sides - The integrated splinter guard guarantees high-quality results, with splinter-free cuts on both sides
• Changing saw blades without using tools - The FastFix saw blade replacement enables the work to be adapted to the material. The right blade can be set up in an instant
• One handle for all functions - On/off switch, speed adjustment, quick start/stop functions and guiding mechanism – all of the most important control elements are integrated and clearly arranged in the multifunctional handle
• Tools always to hand - There is sufficient space in the saw blade holder for up to four saw blades, a splinter guard and pencil – dust-protected and within reach at all times
• Easy to transport - Low weight and integrated foldaway legs: The CS 50 is easy to transport and set up in seconds. Changing the working height is easy
• Always work at the right angle - Adjusting the cutting angle for angled cuts between -2° and 47° on the CS 50 is quick and easy thanks to the convenient control elements
• For long cross cuts - The CS 50 has a cutting path of 304 mm, allowing you to make cross cuts of up to 200 mm, even at an angle of 45°
• Fast changeover from cross to rip cuts - The angle stop can be rotated by 180° and can be used easily on either side. The CS 50 can therefore be changed from the cross-cut to the rip-cut position in no time at all
• Can be expanded - The PRECISIO can be converted into a fully fledged sawing station with minimal effort by adding an extension table, table lengthener and sliding table
• The holder for accessories - Push stick, guard and preset profile setting rail can be securely stowed in the accessory holder directly on the saw to save space. This means that the system accessories are neatly stowed and always to hand
• Simply mobile. Simply stable - The integrated transport rollers enable the machine to be moved easily. The tilt protection with collapsible support lends the saw additional stability

Technical data

• Power consumption - 1200 W
• Idle engine speed - 1600-4200 min⁻¹
• Saw blade diameter - 190 mm
• Cutting height 90°/45° - 0-52 / 0-37 mm
• Inclination - 0° (-2)° - 45° (+47)°
• Cutting path - 304 mm
• Table diamensions - 585 x 400
• Table height, legs folded away - 316 mm
• Table height, legs unfolded - 900 mm
• Dust extraction connection diameter - 27/36 mm
• Weight - 42,9 kg

Noise and vibration values

• Idle state: A-weighted sound power level, LWA - 97.00 dB(A)
• Idle state: Uncertainty (vibration) K - 1.50 m/s²
• Idle state: A-weighted sound pressure level, LpA - 84.00 dB(A)
• Idle state: Total vibration average, Ah - 2.50 m/s²
• Idle state: Uncertainty (noise) K - 3.00 dB
• Sawing: Total vibration average, Ah - 2.50 m/s²
• Sawing: Uncertainty (noise) K - 3.00 dB
• Sawing: A-weighted sound power level, LWA - 103.00 dB(A)
• Sawing: A-weighted sound pressure level, LpA - 90.00 dB(A)
• Sawing: Uncertainty (vibration) K - 1.50 m/s²

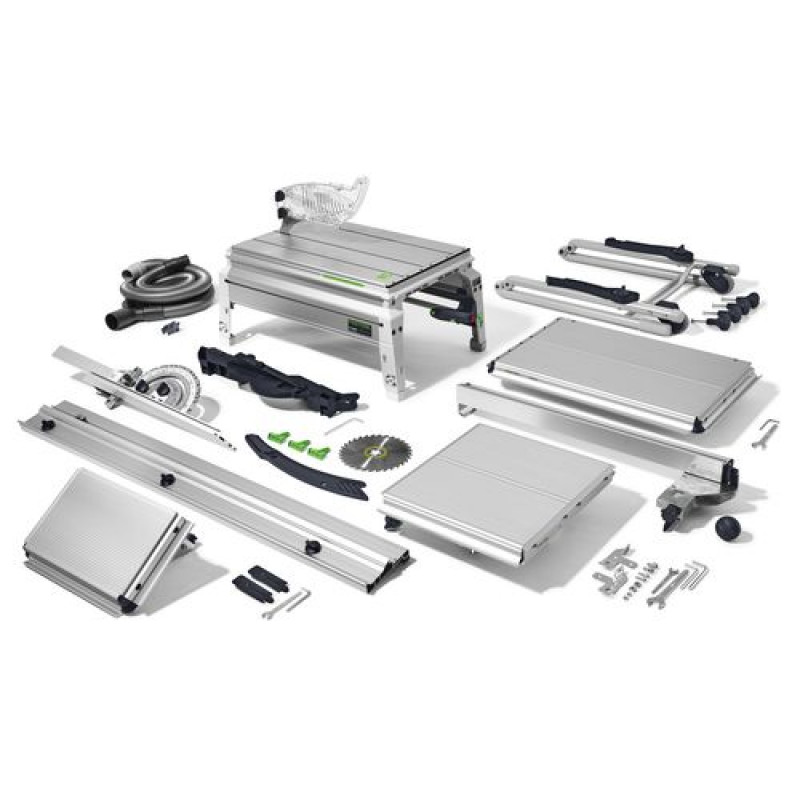

Items included

• HW universal saw blade W32 (492048)
• angle stop (574797)
• ripping-cut fence (574796)
• sliding table (492100)
• extension table (492092)
• extension table (492090)
• foldaway legs (575671)
• 3 x splinter-guard
• dust extraction set (488292)
• workpiece holder
• accessories holder
• support with transport roller
• hex key WAF 5
• in carton box

Applications

• Draw the saw blade for quick, precise cross cuts up to 300 mm wide
• Cross cuts up to 200 mm wide at 45°
• Rip cuts up to a depth of 52 mm
• Tilting saw blade for angled cuts between -2° and 47°
• Retractable spacer wedge for hidden cuts - removal not necessary
