Festool Sliding compound mitre saw KAPEX KS 60 E-Set

Availability: Pre-Order

ID: 983

Product Code: 561728

1,010.36€

1,188.66€

(Ex Tax: 835.01€)

Payment options

E-payment
Bank Transfer
Bank Card payment when receiving order in shop
Cash payment when receiving order in shop

Delivery options

Courier
Omniva parcel machine
In-store pick-up

Description

Mobility, versatility and best result, perfectly combined

The new KAPEX KS 60 dispenses with everything not needed for the job – such as every unnecessary gram of weight. With impressive features such as ergonomically positioned carrying handles, cord holder and transport safety device and an extremely compact design thanks to flush-mounted guide rods, this device makes no compromises in terms of precision and versatility – with a mitre angle on both sides of up to 60 degrees and an inclination angle on both sides of up to 46 or 47 degrees. The Festool twin-column guide with two bearings ensures that the saw blade is guided reliably and smoothly. A range of other clever details such as the LED spotlight, the pull-out extension table, the additional groove function and the bevel help to make the KAPEX KS 60 a perfect combination of mobility, versatility and optimum results.

Compact and lightweight, with ergonomic handles and cord holder
LED spotlight to show cutting lines precisely (included in the set or available as an accessory)
Bevel for producing interior and exterior angles
Inclination angle of up to 47°/46° on each side and mitre angle of up to 60° on each side

Features

Unlimited mobility - With ergonomic carrying handles, cord holder and a transport safety device, in addition to an extremely compact, lightweight design thanks to flush-mounted guide rods
Maximum precision - Dual bearings. The Festool twin-column guide guarantees smooth, reliable guidance of the saw blade and maximum precision
Wide range of applications - Thanks to the mitre angles of up to 60 degrees on both sides. The angle can be adjusted using the snaps on the table in order to rapidly select the preset mitre angle via locking positions. All other angles are freely selectable and adjustable
Also for long workpieces - The extension table, which can be pulled out separately, provides reliable and accurate support for long workpieces as well
Even more versatility thanks to the groove function - Rapid and precise grooving is also possible with the cutting depth limiter
Saves time, saves errors - The SM-KS bevel makes the rapid measurement of interior and exterior angles and subsequent transfer to the saw simple and precise
Optimum visibility of the scribe mark - The LED spotlight (included in all SET versions) projects the shadow of the saw blade onto the material, highlighting precise cutting lines
Clever accessories - The additional feet (available as accessories) raise the KS 60 workbench to the exact height of a SYSTAINER SYS 1. This can therefore also be used as a workbench and enables long workpieces to be reliably supported
Fast changes - The spindle stop enables the saw blade to be changed quickly and safely. The Allen key needed for this is stowed neatly in the key storage box and is always close to hand
For left- and right-handed users - Switch and handle are in a central position so they are just as easy for right-handed and left-handed users to operate
Always adapted to the working material - Variable speed preselection for adapting to the working material
More mobile with the base frame - The base frame for the KS 60 is a stand and a transport frame in one – for even easier transportation of the KAPEX KS 60. It takes the KAPEX KS 60 up to a working height that is easier on the back and can be set up quickly and easily using a cleverly designed folding mechanism. The additional trimming attachment enables precise working with the extension arm up to a cutting length of 2,4 m. The KAPEX KS 60 is assembled on the base frame using the UG-AD-KS 60 adapter plate. This also has an integrated saw blade holder for storing an additional saw blade
Systems get it done even better - With the right saw blades for every material. Universal saw blade, fine tooth saw blade and special saw blades for aluminium, acrylic, plastics and many other materials. We have the perfect saw blade for every material from solid wood and panel materials to building panels and plasterboard, hard and soft plastics, non-ferrous metals, Plexiglas and aluminium through to laminate and mineral materials
Extremely versatile - Thanks to an inclination angle on both sides of up to 47 or 46 degrees. The angle is adjusted via the highly accessible and easy to use clamp in combination with the extremely precise scaleAlso for long workpiecesSaves time, saves errors - The SM-KS bevel makes the rapid measurement of interior and exterior angles and subsequent transfer to the saw simple and preciseOptimum visibility of the scribe mark
Clear view of the workpiece and a dust-free environment - The extraction system in combination with a Festool mobile dust extractor sucks up the chips at their source – providing a clean and healthy working environment

Technical data

Power consumption - 1200 W
Idle engine speed - 1300-3500 min⁻¹
Saw blade diameter - 216 mm
Cutting depth 90°/90° - 305 x 60 mm
Cutting depth at 45°/90° - 215 x 60 mm
Cutting depth 45°/45° (left) - 215 x 40 mm
Inclination angle - 47/46 °
Mitre angle - 60/60 °
Dimensions (W x D x H) - 661 x 475 x 430 mm
Dust extraction connection diameter - 27/36 mm
Weight - 17,80 kg
Cutting depth 60°/90° 150 x 60 mm
Cutting depth 45°/45° (right) 215 x 20 mm

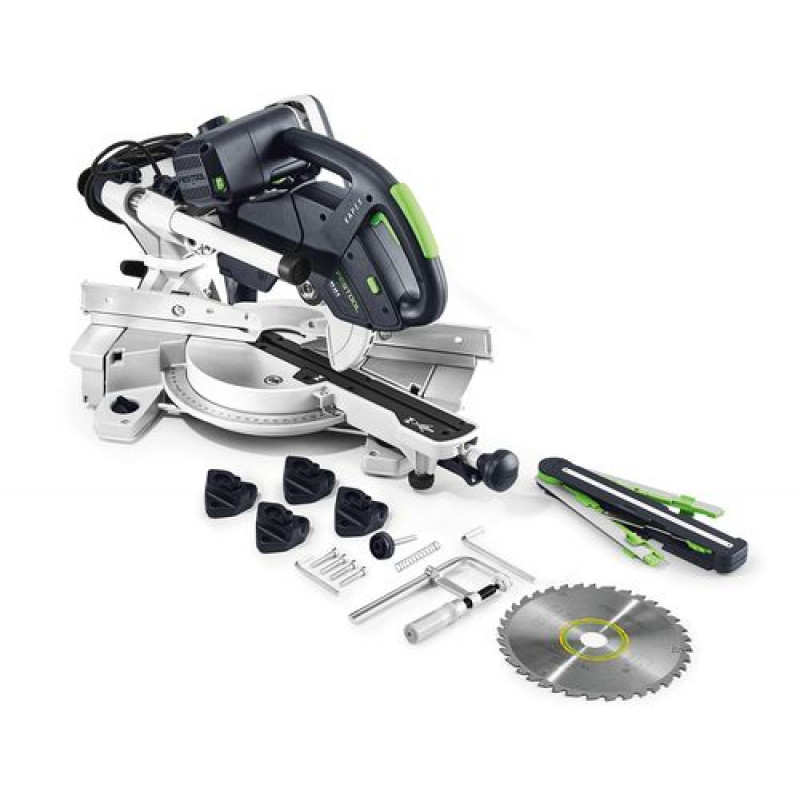

Items included

HW universal saw blade W 36 (500124)
clamp FSZ 120 (489570)
LED spotlight (500120)
bevel (200120)
elevation (500121)
hex key WAF 6
in carton box

Applications

Ideal for mobile use in assembly applications
Cutting boards and panels up to 305 x 60 mm
Trimming strips, profiles and square timber up to 60 mm thick
Precisely angled adjustment of skirting boards and cornices without calculations – in conjunction with the bevel
